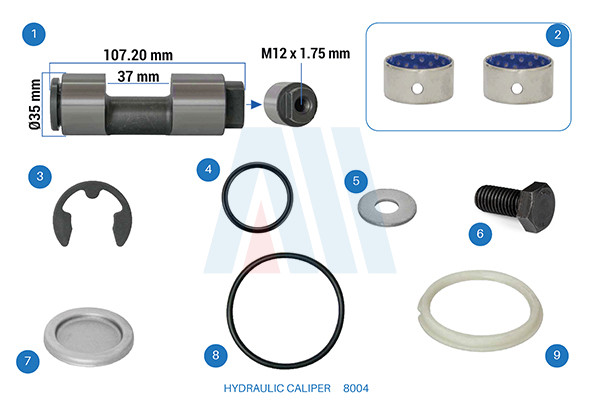

CH7004 / 8004 / Caliper Hand Brake Repair Kit

8004 - CH7004

Caliper Hand Brake Repair Kit

Alcan No 8004
Brand HYDRAULIC CALIPER
Model MERITOR Hydraulic, BREMBO Hydraulic
Sub Model
Weight 0,622 KGS
OEM No CH7004

Caliper Hand Brake Repair Kit

Vehicle Brand Model OEM
# Photograph Alcan No Product Name Measurement Weight Quantity
1
Adjusting Shaft 8063 - CH7004
8063 Adjusting Shaft 0,556 KGS 1
2

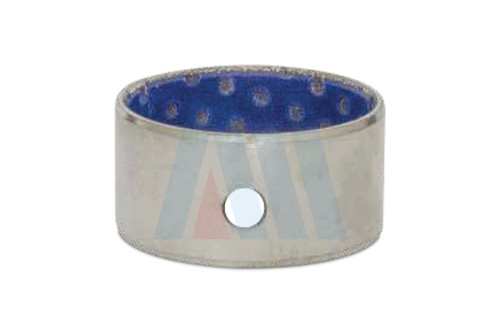

Bush 8013 - CH7004
8013 Bush Ø39 x Ø35,20 x 19,85 mm 0,058 KGS 2
3
Circlip 8064 - CH7004
8064 Circlip 0,001 KGS 1
4
Cap O-Ring 1695 - CH7004
1695 Cap O-Ring 0,001 KGS 1
5
Washer 8065 - CH7004
8065 Washer 0,001 KGS 1
6
Bolt 8041 - CH7004
8041 Bolt M12 x 1,75 x 25 mm 0,001 KGS 1
7
Steel Cap Ø50 mm 8066 - CH7004
8066 Steel Cap Ø50 mm Ø50 mm 0,001 KGS 1
8
O-Ring 1988 - CH7004
1988 O-Ring 0,001 KGS 1
9

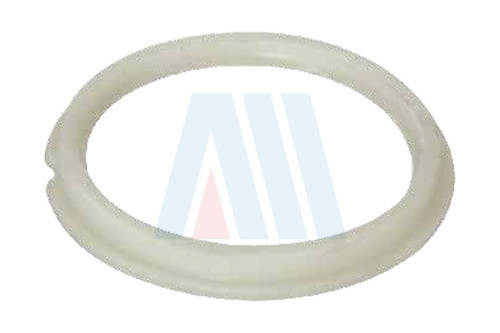

Plastic Washer 1697 - CH7004
1697 Plastic Washer 0,002 KGS 1

Related Products

8060 - CH7060 8060 - CH7060

Wedge Repair Kit
8060

Alcan No : 8060
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7060
8064 - CH7656 8064 - CH7656

Circlip
8064

Alcan No : 8064
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7656
8015 - CH7015 8015 - CH7015

Wedge Repair Kit
8015

Alcan No : 8015
Brand : HYDRAULIC CALIPER
Model : BREMBO Hydraulic
OEM No : CH7015
1374 1374

Pin Boot
1374

Alcan No : 1374
Brand : HYDRAULIC CALIPER
Model : BREMBO Hydraulic
OEM No :
8065 - CH7627 8065 - CH7627

Washer
8065

Alcan No : 8065
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7627
8115 - CH7009 8115 - CH7009

Adjusting Mechanism
8115

Alcan No : 8115
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7009
1696 - CH7700 1696 - CH7700

Seal 68 mm Piston
1696

Alcan No : 1696
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic
OEM No : CH7700
8122 - CH7035 8122 - CH7035

Operating Seals Kit (51mm piston)
8122

Alcan No : 8122
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7035
8072 - CH7876 8072 - CH7876

Adjustment Wedge
8072

Alcan No : 8072
Brand : HYDRAULIC CALIPER
Model : MERITOR Hydraulic, B...
OEM No : CH7876

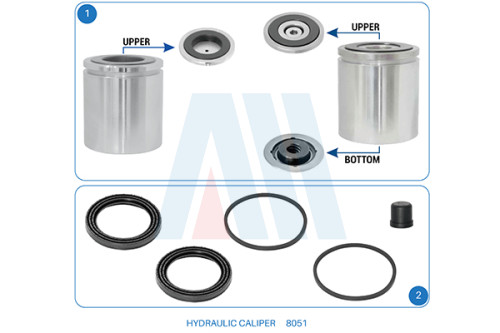

8051 - CH7051 8051 - CH7051
